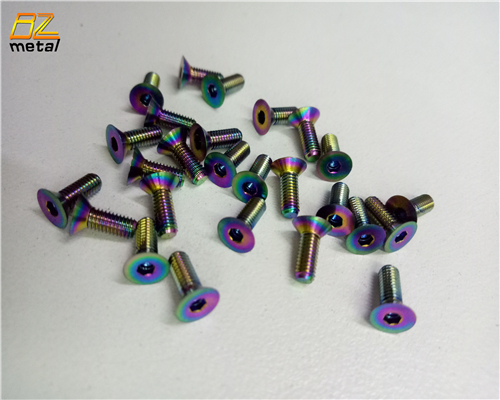

Titanium Flat Head Bolts
Titanium flat head bolts we also called countersunk head screws, Standard is DIN7991, Size from M3xLmm-M24xLmm, also can be customized
Inquiry
Titanium Flat Head bolts
Product Name | Titanium Flat Head bolts (DIN7991 Countersunk head screws) |
Material | Titanium Grade 5 (Ti-6Al-4V),Gr2,Gr7,Gr12 etc |
Standard | DIN7991 |
Processing | Forging, machined |
Specs range | M3xLmm-M24xLmm and also can do according to clients required |
Surface Treatment | Polished and Anodized, Nitrided |
MOQ | 100pcs |
Features | Light weight, high strength, anti-corrosion, excellent mechanical strength |
Application | Micro racing car, Model, Automotive, Chemical, Defence, Medical, Nautical, Petrochemical, Nuclear, Desalination. |
DIN7991 Hexagon socket countersunk head cap screws unit:mm | ||||||||||
Thread diameter | Thread pitch | dk | s | t | a | |||||
max | min | Nom | max | min | max | min | max | min | ||
M3 | 0.5 | 6 | 5.7 | 2 | 2.1 | 2.02 | 1.2 | 0.95 | 92o | 90o |
M4 | 0.7 | 8 | 7.64 | 2.5 | 2.6 | 2.52 | 1.8 | 1.55 | ||
M5 | 0.8 | 10 | 9.64 | 3 | 3.1 | 3.02 | 2.3 | 2.05 | ||
M6 | 1 | 12 | 11.57 | 4 | 4.12 | 4.02 | 2.5 | 2.25 | ||
M8 | 1.25 | 16 | 15.57 | 5 | 5.14 | 5.02 | 3.5 | 3.2 | ||
M10 | 1.5 | 20 | 19.48 | 6 | 6.14 | 6.02 | 4.4 | 4.1 | ||
M12 | 1.75 | 24 | 23.48 | 8 | 6.175 | 8.025 | 4.6 | 4.3 | ||
M14 | 2 | 27 | 26.48 | 10 | 10.175 | 10.025 | 4.8 | 4.5 | ||
M16 | 2 | 30 | 29.48 | 10 | 10.175 | 10.025 | 5.3 | 5 | ||
M18 | 2.5 | 33 | 32.38 | 12 | 12.212 | 12.032 | 5.5 | 5.2 | ||
M20 | 2.5 | 36 | 35.38 | 12 | 12.212 | 12.032 | 5.9 | 5.6 | ||
M22 | 2.5 | 36 | 35.38 | 14 | 14.212 | 14.032 | 8.8 | 8.44 | 62o | 60o |
M24 | 3 | 39 | 38.38 | 14 | 14.212 | 14.032 | 10.3 | 9.87 | ||
1.Standard Exporting package.
2.Original package or neutral package.
3.According to clients'needs.
4.Shipped in10-35 days after payment.
