Titanium Anode
Titanium Anode

Titanium anode also called MMO anode,DSA & Insoluble anode. Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.

Inquiry

Description.jpgTitanium anode also called MMO anode,DSA & Insoluble anode. Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.

Material

Gr1/Gr2 titanium as substrate, mixed Ruthenium and Iridium/platinum

Coating

Iridium-Tantalum, Ruthenium-Iridium, Ruthenium-Iridium-Titanium,Platinum,Ruthenium oxide, Iridium oxide as coating

Technology

Sand blasting, Acid washing and Brush coating

Dimension

According to customers’ drawing

Shape of base material

Sheet, pipe, rod, wire and mesh

Parameter

1. Current density≤2000A/m2
2. PH: 0.1-14
3. Max content of fluoride ion is 200PPM

Electrolyte

Salt water/ Saline solution/Brine/Sea water

Advantages

1. Improved resistance for oxygen/chlorine mixed evolution
2. Range of compositions for various duties available
3. Improved resistance in acidic media
4. Low wear rate

Features:
1. High corrosion resisting
2 .High current efficiency
3. Long working life
4. High current density
5. Light-weight
6. Stable operating voltage
7. The base material can be reused

Application:

1. Water (Brine and Sea water) Treatment.
2. Chemical, Paper, Petro-Chemical and Fertilizer Industries.
3. Textile Industries.
4. Electrical & Electronics Engineering Industries.
5. Metal Finishing, Electro Plating, Semi Conductors and PCB Industries.
6. Chemical Industries.
7. Chlore-Alkali & Desalination application.
8. Cathodic Protection (ICCP)

Titanium Anode Production Process

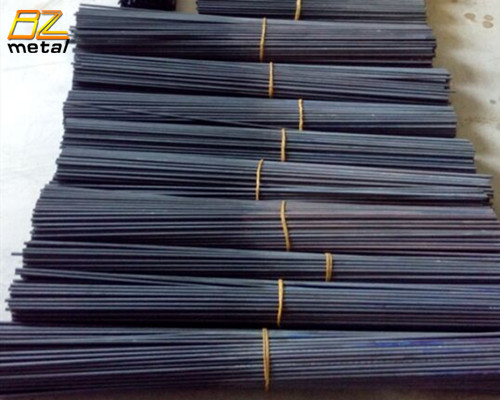

Titanium Anode Production Processwps图片.jpgProduct show.jpgTitanium MMO wires_.jpgTi wire with coating Ir Ru-2_副本.jpgpackaging & delivery.jpg

1. Standard Exporting package.

2. Original package or neutral package.

3. According to clients' needs.

4. Shipped in 10-35 days after payment.

titanium products for processing.jpgtitanium products for shipping.jpg
