1. Multi-Platform Compatibility

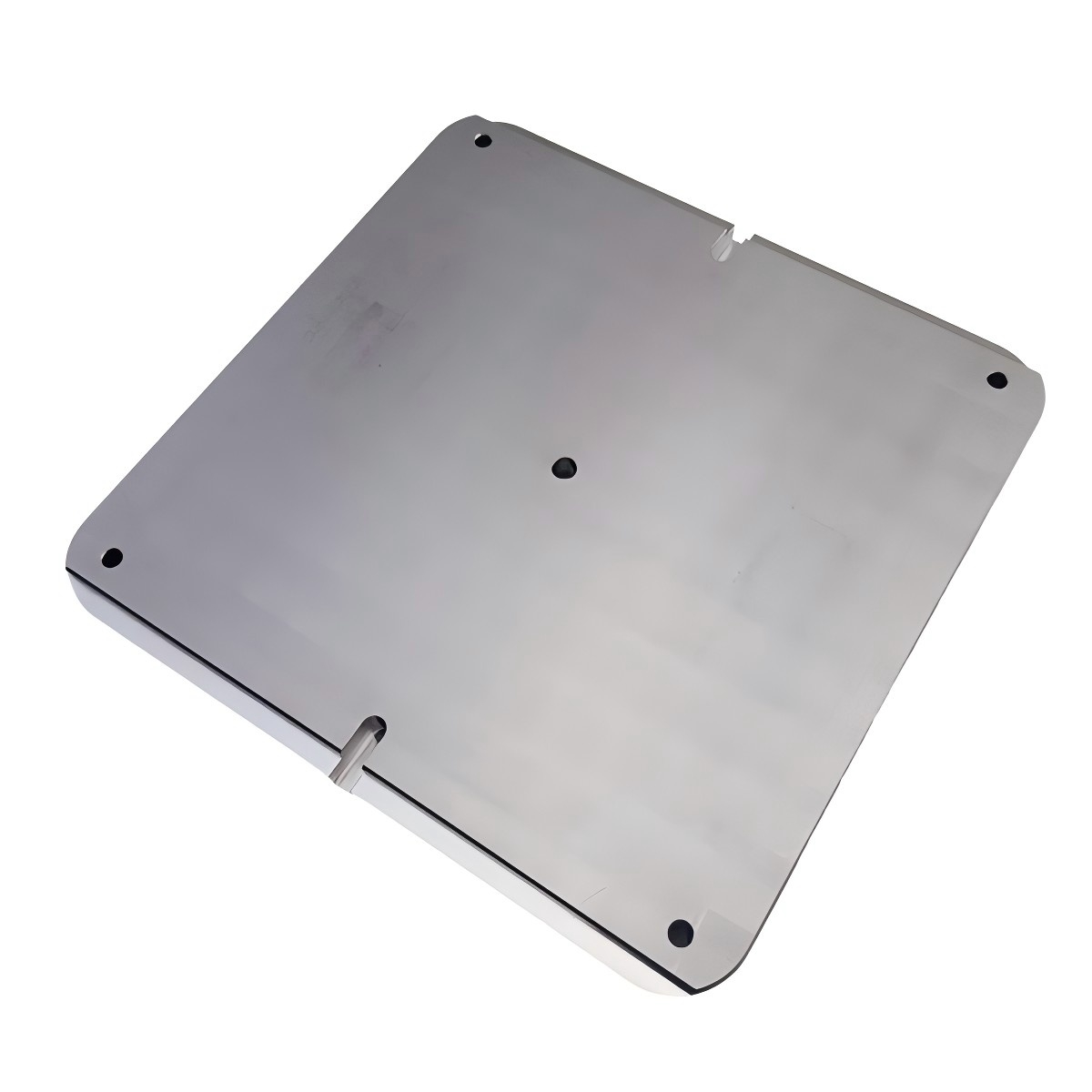

We manufacture precision-matched substrates for all major metal AM platforms:
3D Systems: DMP Flex 350, Factory 350, DMP 100/200. (Features: Precision-milled lugs & alignment bores).
EOS: M 290, M 400-4, M 100. (Features: Exact counterbore patterns & reference points).
Renishaw: RenAM 500S/D, AM 400. (Features: Reinforced threaded holes for repeated torque).
SLM Solutions: SLM 125, 280, 500, 800. (Features: Large-format flatness control).
Custom / Research Systems: We machine bespoke geometries based on your CAD drawings for experimental or proprietary AM setups.
2. Why Our Substrates
A. We control the chemistry from the start. All substrates are available in:
Ti-6Al-4V Grade 5: For general aerospace and industrial applications.
Ti-6Al-4V ELI (Grade 23): Extra-low interstitials for biocompatible medical implants.
Supplied with full 3.1 Material Test Reports (MTR).
B. Advanced Stress-Relief Protocol
To prevent "potato-chip" warping during intense laser melting, our plates undergo Secondary Vacuum Annealing. This ensures the plate remains perfectly flat (Parallelism < 0.05mm) across its entire surface, protecting your recoater blade from catastrophic interference.
3. Precision Machining Specifications
Feature | Our Standards |
Material Standards | ASTM B348 / ASTM F136 / AMS 4928 |
Surface Finish (Build Side) | Ra 1.6 μm - Ra 6.3 μm (Customizable for adhesion) |
Flatness Tolerance | ≤ 0.05 mm per 300mm |
Interface Precision | H7 Tolerance for alignment bores and locating features |
Thread Quality | CNC-tapped threads with anti-galling verification |
4. Global Workflow
Drawing Submission: Send us your OEM or custom CAD file (.STEP / .DXF).
Material Selection: Choose Grade 5 or Grade 23 based on your application.
Stress-Relief & Machining: Precision CNC milling of mounting lugs, pockets, and threads.
Surface Grinding: Final grinding of the build surface to ensure perfect Z-axis orthogonality.
Quality Verification: CMM inspection and ultrasonic testing (optional).
Worldwide Shipping: Consolidated air/sea freight with export-compliant packaging.
