100% Custom Engineered: Manufactured strictly according to your 2D/3D technical drawings (STEP, IGES, PDF) or physical samples.
Complex Geometry Capabilities: Specialized in non-standard head shapes, flange/washer integration, stepped/shoulder shanks, custom drive types (Hex, Torx, 12-Point), and hollow designs.
Premium Material Options: Aerospace Grade 5 Ti-6Al-4V (TC4), Titanium Grade 2 (TA2), Ti-6Al-4V ELI, Grade 7, and Grade 12.
High-Precision Threading: Machined or thread-rolled precision threads (6H/6g tolerance) ensuring zero-galling and high fatigue resistance.
Vibrant Surface Finishes: Physical Vapor Deposition (PVD) DLC black, Anodized colors (Gold, Blue, Purple, Rainbow, Green), Micro-Arc Oxidation (MAO), and High Polish.
Rapid Prototyping & Scalable Production: Fast turnaround for sample prototypes (3–7 days) to full-scale production runs with low MOQ.
Customization Capability Matrix
| Customization Dimension | Available Options & Technical Specifications |
Material | Titanium Grade 5 (Ti-6Al-4V / TC4), Grade 2 (Pure Titanium), Grade 7 (Ti-Pd), Grade 12 (Ti-0.3Mo-0.8Ni), Ti-6Al-4V ELI |
Custom Head Styles | Flange Hex Drive, Hex Socket, Torx / Star Drive, Flange Torx, Button Head, Countersunk, T-Head, Hollowed Lightened Head, Custom Geometric Heads |
Shank & Body Designs | Stepped / Shoulder Bolts, Captive Shanks, Hollow/Drilled Center (for extra weight reduction or wiring), Unthreaded Precision Pilots |
Thread Types & Pitch | Metric (M1.6 – M36+), Imperial/UNF/UNC (#2 – 1-1/2"), Fine Pitch, Coarse Pitch, Custom Multi-Start Threads |
Thread Manufacturing | Precision CNC Threading or Thread Rolling (for enhanced fatigue life & strength) |
Machining Tolerances | CNC Turning & Milling up to ±0.005 mm (5 microns) |
Surface Treatments | Anodizing (Coloring), PVD Coating (DLC Black, Titanium Nitride Gold, Rainbow), Micro-Arc Oxidation (MAO), Sandblasting |
Quality Inspection | 100% CMM, Optical Projector, Thread Gauge Inspection, Material Test Report (EN 10204 3.1) provided |
Detailed Product Description & Custom Engineering Capabilities

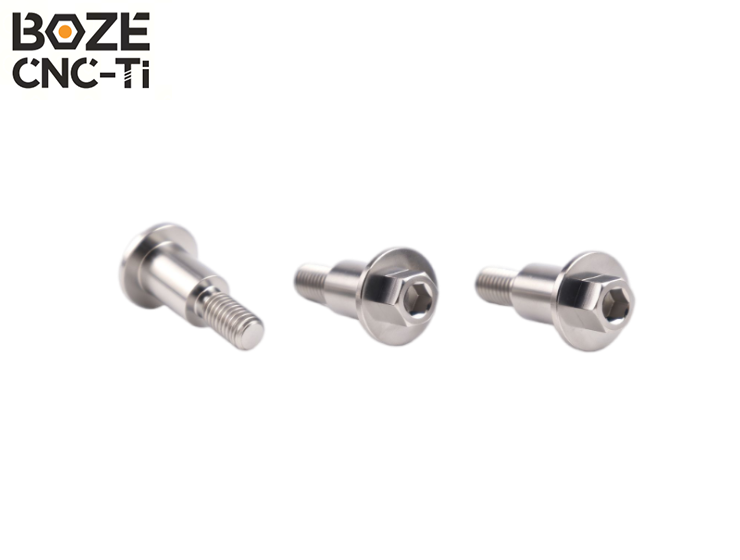

Turn Your Ideas & Drawings into Precision Titanium Fasteners
When standard off-the-shelf fasteners cannot meet your engineering demands, BOZE CNC-Ti delivers fully customized, high-precision titanium fasteners tailored exactly to your application. Whether you need a unique stepped shoulder design, integrated washer flanges, weight-saving hollowed shanks, or proprietary drive patterns, our advanced multi-axis CNC Swiss machining center turns your technical drawings into reality.
Why Choose Our Custom Titanium Machining Services?
1.Multi-Axis CNC Precision & Complex Geometries
Utilizing state-of-the-art multi-axis CNC turning-milling compound machines, we produce complex fastener profiles in a single setup. This eliminates concentricity errors between the head, shoulder shank, and thread, ensuring flawless alignment for critical assemblies.
2.Aerospace Grade Materials with Full Traceability
We strictly source premium titanium raw material. Grade 5 (Ti-6Al-4V) provides high tensile strength (>900 MPa) and a 45% weight saving over stainless steel, while maintaining superior fatigue life and high corrosion resistance. Every batch comes with full Mill Test Certificates (MTC).
3.Thread Rolling for Extreme Dynamic Loads
For high-vibration applications like motorsport suspensions and aerospace linkages, we offer rolled threads. Unlike cut threads, thread rolling compresses the metal grain structure, significantly increasing fatigue resistance, pull-out strength, and preventing thread galling.
4.Tailored Surface Finishes & Color Coding
Enhance both the performance and visual aesthetics of your custom hardware:
PVD DLC (Diamond-Like Carbon) / TiN: Delivers an ultra-hard black or gold surface with extremely low friction.
Anodizing: Provides distinct color options (Gold, Blue, Purple, Rose, Green, Rainbow) for product identification or branding.
Micro-Arc Oxidation (MAO): Enhances wear and thermal insulation.
Industries Served
1.Motorsport & Racing Modifications: Custom brake caliper bolts, engine casing stepped bolts, wheel studs, suspension fasteners.
2.Aerospace & Drone Engineering: Lightweight custom structural pins, drone motor mounting hardware, hollow titanium bolts.
3.Medical Devices & Robotics: Non-magnetic, biocompatible micro screws, custom surgical instrument fasteners.
4.Hydrogen Fuel Cells & Energy Equipment: Acid-resistant custom titanium studs and clamping hardware.
5.High-End Custom Bicycle / Motorcycle: Custom fork bolts, stem faceplate hardware, custom aesthetic accents.
How to Order Custom Titanium Bolts
1.Send Your Request: Upload your 2D/3D CAD drawings (.STEP, .IGES, .DWG, .PDF) or send physical samples to our engineering team.
2.Specify Requirements: Indicate material grade, quantity, surface finish/color, thread tolerance, and special application needs.
3.DFM Review & Quote: Our engineers will perform a Design for Manufacturability (DFM) check and issue a competitive quotation within 12–24 hours.
4.Rapid Prototyping: Once approved, we produce prototype samples for your fitment and functional testing (3–7 business days).
5.Mass Production & Fast Delivery: Upon sample approval, we launch full-scale production with rigorous quality inspection before global dispatch.
